SUCHAI (The Satellite of the University of Chile for Aerospace Investigation) 설치하기

The Satellite of the University of Chile for Aerospace Investigation (SUCHAI) 는 칠레대학교(Physics and Mechanical Engineering Departments of the Faculty of Physical and Mathematical Sciences (FCFM) at University of Chile)에서 만든 CubeSat 오픈소스다.



이 suchai를 설치하는 방법에 대해 정리한다.

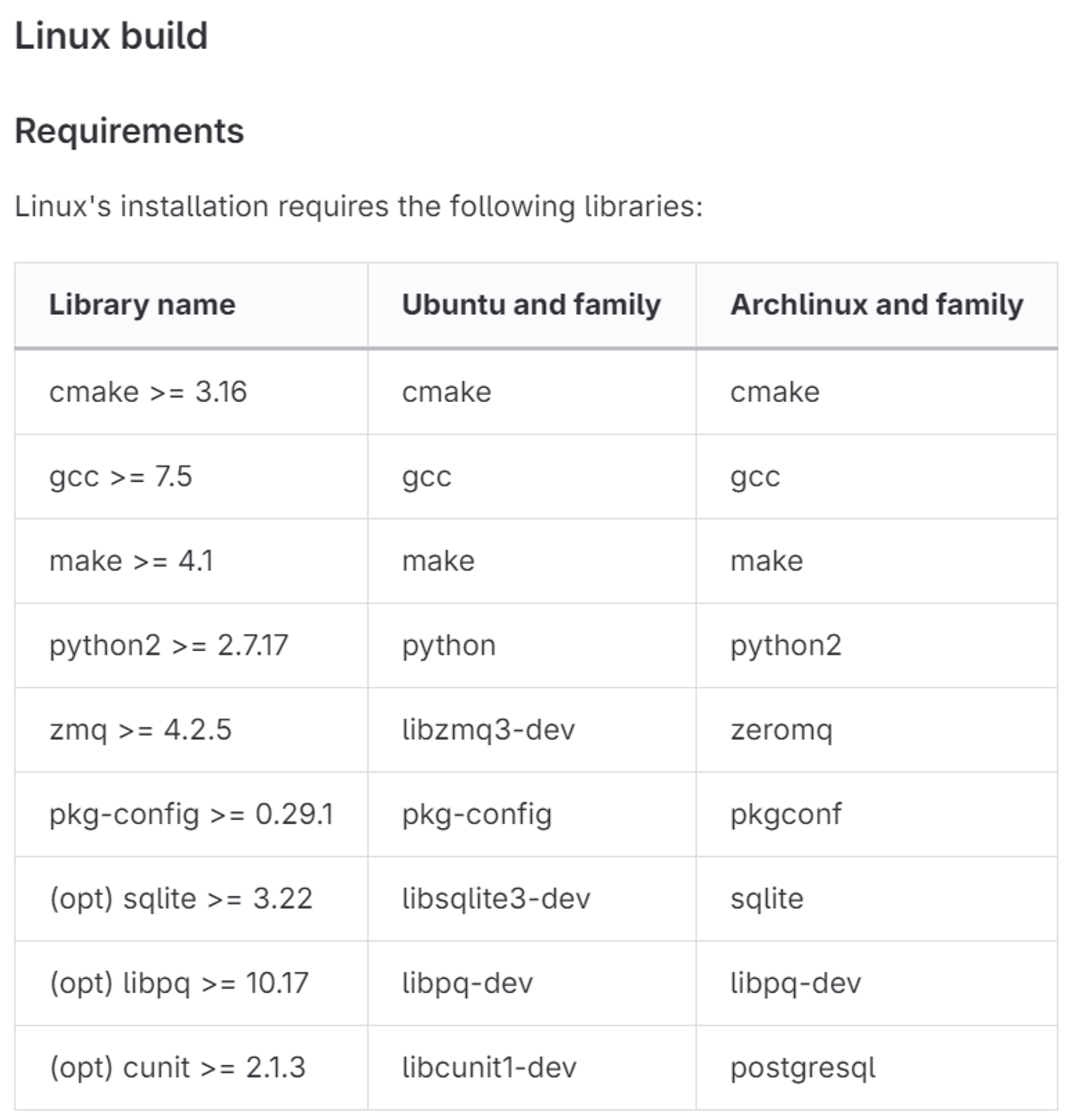

빌드 디펜던시 설치

sudo apt install libzmq3-dev
sudo apt install pkg-config



libcsp 빌드

CSP(CubeSat Protocol)는 CubeSat과 같은 소형 우주선에서의 통신을 위해 설계된 소형 네트워크 계층 프로토콜이다.

libcsp는 바로 이 csp 기능들을 담아둔 라이브러리이다.



설치 : https://libcsp.github.io/libcsp/INSTALL.html

How to install LibCSP — Cubesat Space Protocol



• Current implementation uses the LibCSP to communicate subsytems and the ground station. Linux port can use the LibCSP with ZMQ interface. (본문발췌)

  sudo apt install cmake
  sudo apt install gcc
  sudo apt install make
  sudo apt install python
  sudo apt install libzmq3-dev
  sudo apt install pkg-config

  git clone https://github.com/libcsp/libcsp
  cd libcsp

  sudo apt install meson

  meson setup builddir
  cd builddir

  ninja

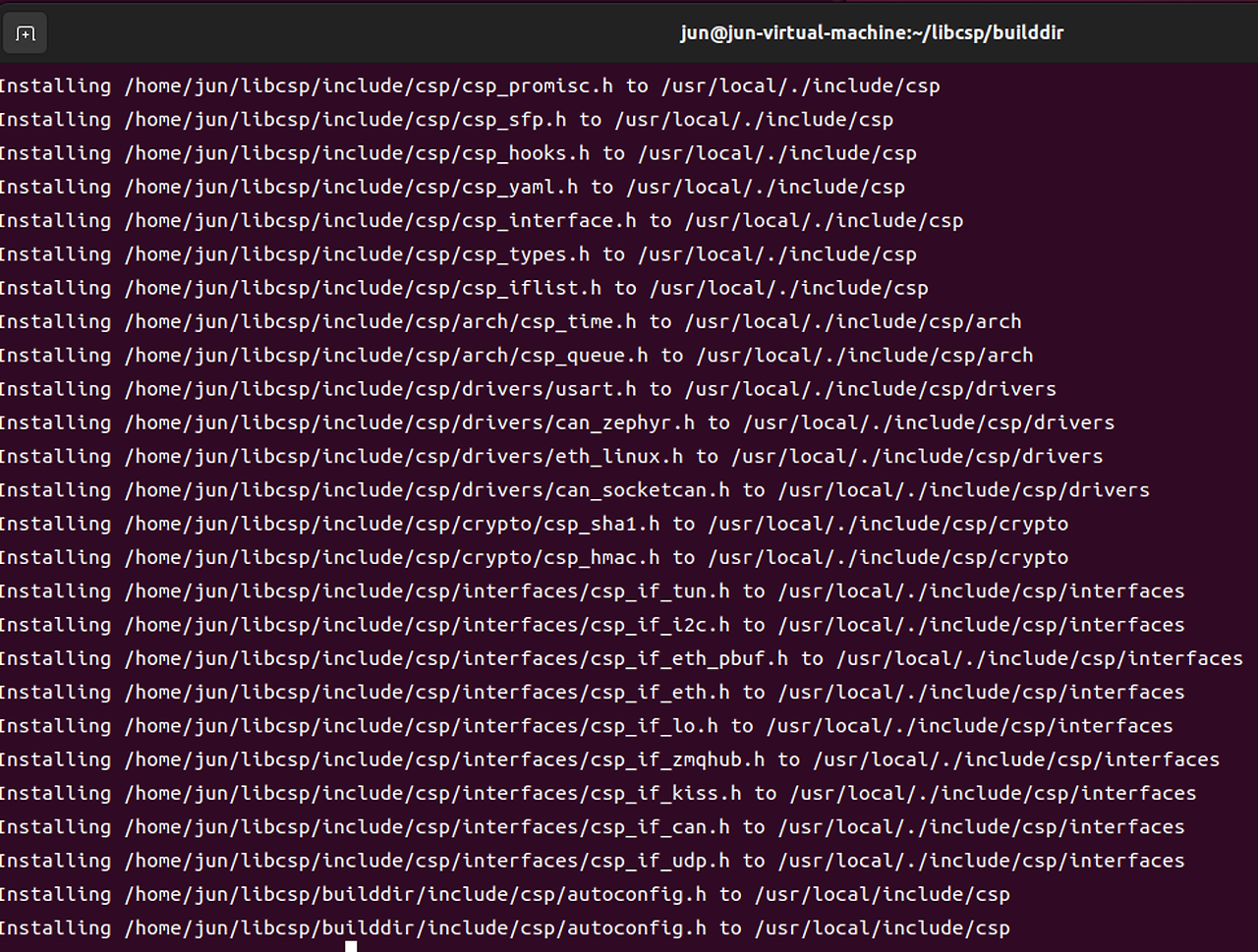

  ninja install

위와 같이 설치해주면 된다.

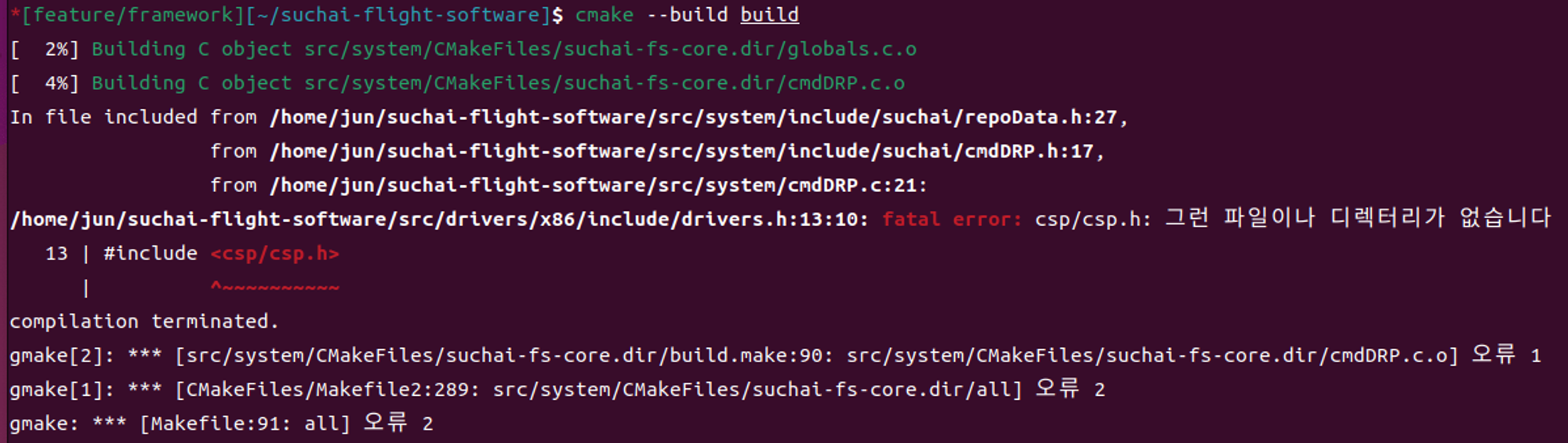

Trouble Shooting 1 - csp/csp.h 못 찾는 경우 (fatal error : csp/csp.h)

ninja 후 ninja install 을 안해줘서 그렇다. 빌드는 잘됐는데 install을 해주면 해결된다.

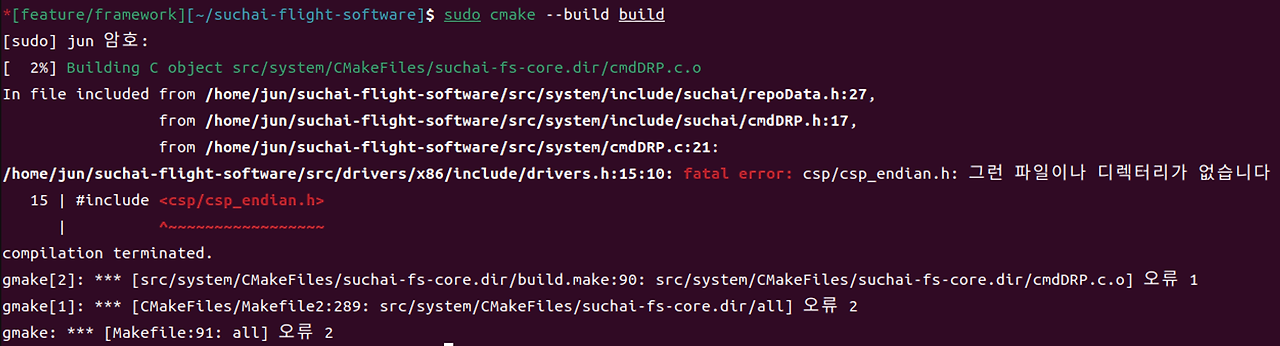

Trouble Shooting 2 - csp/csp_endian.h 못 찾는 경우 (fatal error : csp/csp_endian.h)

아래 디펜던시들을 설치해주면된다.

sudo apt install libzmq3-dev
sudo apt install pkg-config





suchai 빌드

위 과정을 잘 따라왔다

아래와 같이 설치후 빌드 및 실행하면된다.

git clone https://gitlab.com/spel-uchile/suchai-flight-software

cmake -B build -DAPP=simple
cmake --build build

cd build/apps/simple
./suchai-app

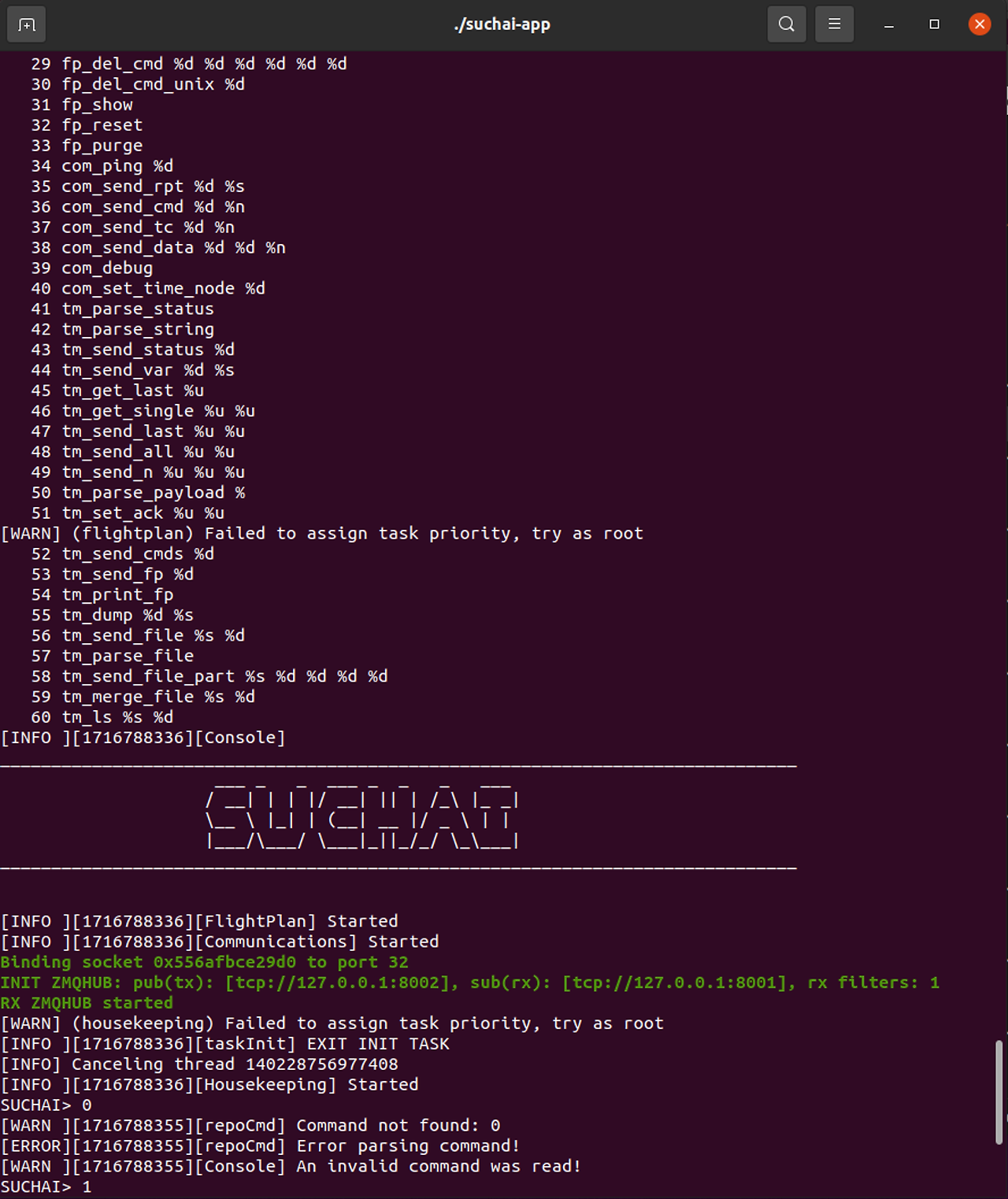

성공!

i#!/usr/bin/env bash
# Script for automated test running.
#
# The results of each test can be found on log files that generate after execution.
#
# These logs will generate inside each test's directory.
#
# Authors:  Tamara Gutierrez R.
#           Diego Ortego P.
#           Carlos Gonzalez C.

test_build_enabled=1
test_unit_enabled=1
test_cmd_enabled=1
test_bug_delay_enabled=0
test_load_enabled=1
test_sgp4_enabled=1
test_tm_io_enabled=1
test_file_enabled=0

while getopts ":b:u:c:d:l:s:t:f:h" opt; do
    case ${opt} in
        b )
            test_build_enabled=$OPTARG
            ;;
        u )
            test_unit_enabled=$OPTARG
            ;;
        c )
            test_cmd_enabled=$OPTARG
            ;;
        d )
            test_bug_delay_enabled=$OPTARG
            ;;
        l )
            test_load_enabled=$OPTARG
            ;;
        s )
            test_sgp4_enabled=$OPTARG
            ;;
        t )
            test_tm_io_enabled=$OPTARG
            ;;
        f )
            test_file_enabled=$OPTARG
            ;;
        \? )
            echo "Invalid option: $OPTARG" 1>&2
            ;;
        : )
            echo "Invalid option: $OPTARG requires an argument" 1>&2
            ;;
    esac
done
shift $((OPTIND -1))

# Gets the current execution directory (the absolute path to this script)
SCRIPT_PATH="$( cd "$(dirname "$0")" ; pwd -P )"
WORKSPACE=${SCRIPT_PATH}

# Prints the current workspace path, for debugging purposes
echo ${WORKSPACE}

# ---------------- --TEST BUILD ------------------
# The test log is called test_unit_log.txt
# Tests for all storage modes
if [ $test_build_enabled -eq 1 ]
then
  TEST_NAME="test_build"

  for ARCH in "X86" "RPI"
  do
    for ST_MODE in "RAM" "SQLITE" "FLASH"
    do
      echo ""
      echo "**** Testing ${TEST_NAME} for arch ${ARCH}, storage ${ST_MODE} ****"
      rm -rf build_test
      # Just build the simple app with the test's parameters
      cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=${ARCH} -DAPP=simple -DTEST=0 -DSCH_ST_MODE=${ST_MODE} -DSCH_STORAGE_TRIPLE_WR=1 && cmake --build build_test -j4
      status=$?
      [ $status -eq 0 ] || exit 1
    done
  done
  cd ${WORKSPACE}
fi


# ---------------- --TEST_UNIT ------------------
# The test log is called test_unit_log.txt
# Tests for all storage modes
if [ $test_unit_enabled -eq 1 ]
then
  TEST_NAME="test_unit"

  for ST_MODE in "RAM" "SQLITE" "FLASH"
  do
      echo ""
      echo "**** Testing ${TEST_NAME} for storage ${ST_MODE} ****"
      rm -rf build_test
      # build the unitest with the test's parameters
      cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=${ST_MODE} -DSCH_STORAGE_TRIPLE_WR=1 && cmake --build build_test -j4
      [ $? -eq 0 ] || exit $?

      # Runs the test, saving a log file
      cd build_test/test/${TEST_NAME}
      rm -f ${TEST_NAME}_${ST_MODE}_log.txt
      ./suchai-test #| cat >> ${TEST_NAME}_${ST_MODE}_log.txt
      [ $? -eq 0 ] || exit $?
      echo ""
      cd -
  done
  cd ${WORKSPACE}
fi


## ---------------- --TEST_INT_CMD ------------------
#
## The main test log is called test_int_cmd_log.txt
## That log is compares with test_int_cmd_log_base.txt
## The result of the comparison is in test_int_cmd_comparator_log.txt
#
if [ $test_cmd_enabled -eq 1 ]
then
  TEST_NAME="test_int_cmd"
  rm -rf build_test
  # build the cmdtest with the test's parameters
  cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=RAM && cmake --build build_test -j4
  [ $? -eq 0 ] || exit $?

  # Runs the test, saving a log file
  rm -f /test/${TEST_NAME}/${TEST_NAME}_log.txt
  ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
  [ $? -eq 0 ] || exit $?
  echo ""
  cd -
  cd ${WORKSPACE}
  #
  ## Makes result comparison
  cd test/${TEST_NAME}
  rm -f ${TEST_NAME}_comparator_log.txt
  python logs_comparator.py | cat >> ${TEST_NAME}_comparator_log.txt
  echo ""
  cd ${WORKSPACE}
  #
fi


## ---------------- --TEST_LOAD ------------------
#
## The test log is called test_int_load_log.txt
#
if [ $test_load_enabled -eq 1 ]
then
  TEST_NAME="test_int_load"

    echo ""
    echo "**** Testing ${TEST_NAME} ****"
    rm -rf build_test
    # build the test with the test's parameters
    cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=RAM  && cmake --build build_test -j4
    [ $? -eq 0 ] || exit $?

    ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
    [ $? -eq 0 ] || exit $?
    echo ""
    cd -

  cd ${WORKSPACE}
fi


## ---------------- --TEST_INT_BUG_DELAY ------------------
#
## The test log is called test_int_bug_delay_log.txt

if [ $test_bug_delay_enabled -eq 1 ]
then
  TEST_NAME="test_int_bug_delay"

    echo ""
    echo "**** Testing ${TEST_NAME} ****"
    rm -rf build_test
    # build the test with the test's parameters
    cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=RAM  && cmake --build build_test -j4
    [ $? -eq 0 ] || exit $?

    ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
    [ $? -eq 0 ] || exit $?
    echo ""
    cd -

  cd ${WORKSPACE}
fi

## ---------------- --TEST_INT_SGP4 ------------------
#
## The test log is called test_int_sgp4_log.txt

if [ $test_sgp4_enabled -eq 1 ]
then
  TEST_NAME="test_int_sgp4"

    echo ""
    echo "**** Testing ${TEST_NAME} ****"
    rm -rf build_test
    # build the test with the test's parameters
    cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=RAM  && cmake --build build_test -j4
    [ $? -eq 0 ] || exit $?

    ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
    [ $? -eq 0 ] || exit $?
    echo ""
    cd -

  cd ${WORKSPACE}
fi


## ---------------- --TEST_INT_TM_IO ------------------
#
## The test log is called test_int_tm_io_log.txt

if [ $test_tm_io_enabled -eq 1 ]
then
  TEST_NAME="test_int_tm_io"

    echo ""
    echo "**** Testing ${TEST_NAME} ****"
    rm -rf build_test
    # build the test with the test's parameters
    cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_ST_MODE=RAM -DSCH_COMM_NODE=3 && cmake --build build_test -j4
    [ $? -eq 0 ] || exit $?

    ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
    [ $? -eq 0 ] || exit $?
    echo ""
    cd -

  cd ${WORKSPACE}
fi

## ---------------- --TEST_INT_FILE-- ------------------
#
## The test log is called test_int_file_log.txt

if [ $test_file_enabled -eq 1 ]
then
  TEST_NAME="test_int_file"

    echo ""
    echo "**** Testing ${TEST_NAME} ****"
    rm -rf build_test
    # build the test with the test's parameters
    cmake -B build_test -G Ninja -DSCH_OS=LINUX -DSCH_ARCH=X86 -DAPP=${TEST_NAME} -DTEST=1 -DSCH_COMM_NODE=3  && cmake --build build_test -j4
    [ $? -eq 0 ] || exit $?

    ./build_test/test/${TEST_NAME}/suchai-test > test/${TEST_NAME}/${TEST_NAME}_log.txt
    [ $? -eq 0 ] || exit $?
    echo ""
    cd -

  cd ${WORKSPACE}
fi


#TODO: DELETE THIS EXIT AFTER FIXING THE REST OF THE TESTS!
exit 0
#TODO: REMEMBER TO DELETE THIS EXIT!
